Special Features • Specify plant with appropriate editor o Transfer Function, numeric or formula o State Space Model, numer or formula • Grahically modify Controller Poles & Zeros • Analyse Open Loop while modifying plant or controller • Analyse Closed Loop while modifying plant or controller • Set actual design to reference, modifications are dsiplay with respect to reference design • Easy, integrated design documentation • History data records all users

Bode Controller Editor: Lead Controller (red)

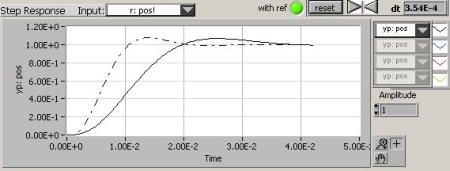

Performance with repect to reference design (Reference design is dash-dotted)

Unzip before installation
